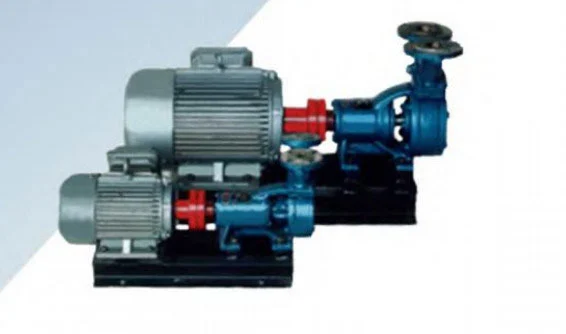

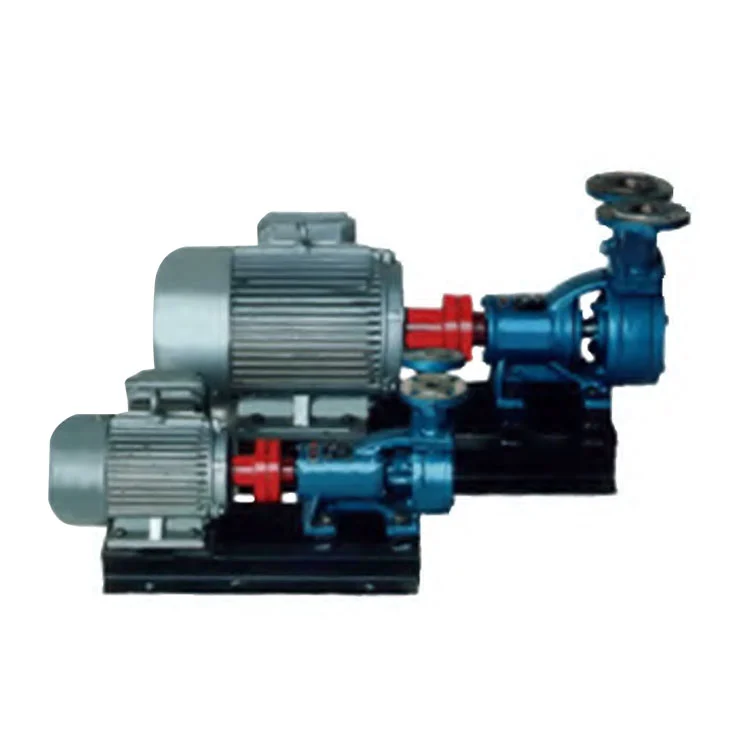

W Marine Pam Swirl Horizontal untuk mengepam air jernih dan media yang sedikit menghakis.
Parameter sekiranya kekerapan bekalan kuasa 50Hz
| Jenis | (50Hz 3 φ 380v) Parameter Teknikal Utama | Kuasa jenis motor kw | Berat Kg |
|||||
| kapasiti m3/h |
Kepala m |
Kelajuan r/min | NPSHR m |
Kuasa aci kw |
||||
| 20W-20 | 0.72 | 20 | 2900 | 6.5 | 0.18 | Y801-2H | 0.75 | |
| 25W-25 | 1.44 | 25 | 2900 | 6 | 0.38 | Y801-2H | 0.75 | |
| 32W-30 | 2.88 | 30 | 2900 | 6 | 0.74 | Y90S-2H | 1.5 | |
| 40W-40 | 5.4 | 40 | 2900 | 5 | 1.73 | Y112M-2H | 4 | |
| 50W-45 | 9 | 45 | 2900 | 4 | 3.06 | Y132S1-2H | 5.5 | |
| 65W-50 | 14.4 | 50 | 2900 | 3.5 | 5.03 | Y160M1-2H | 11 | |
| 20W-65 | 0.72 | 65 | 2900 | 6 | 0.85 | Y90L-2H | 2.2 | |
| 25W-70 | 1.44 | 70 | 2900 | 5.5 | 1.25 | Y90L-2H | 2.2 | |
| 32W-75 | 2.88 | 75 | 2900 | 5 | 1.96 | Y112M-2H | 4 | |
| 40W-80 | 5.0 | 80 | 2900 | 4 | 3.36 | Y132S1-2H | 5.5 | |
| 40W-90 | 5.4 | 90 | 2900 | 3.5 | 4.01 | Y132S2-2H | 7.5 | |
