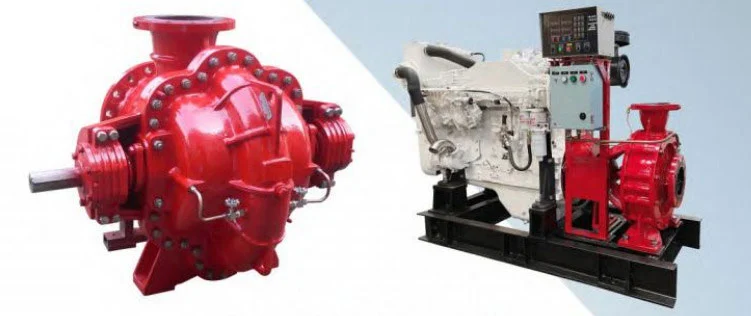

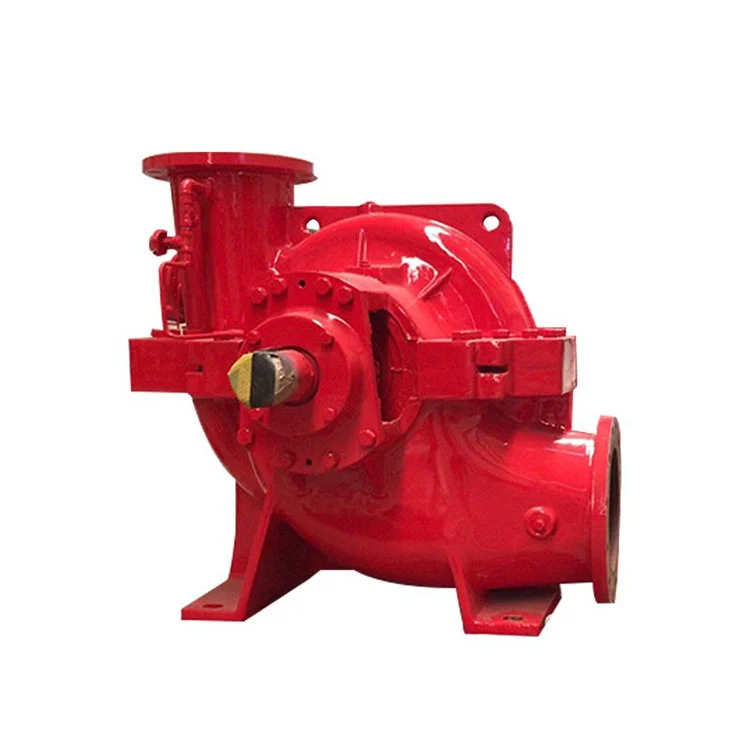

Siri pam api luaran laut CXB ini terutamanya didorong oleh enjin diesel marin. Mereka yang mempunyai kuasa yang lebih kecil juga boleh didorong oleh motor.
Melihat dari motor, terdapat dua perubahan yang anda boleh pilihan, tetapi benang dalam aci mesti terbalik. Kami boleh menyediakan asas meriam dan pangkalan sistem kawalan kepada permintaan klien.
| Jenis | Parameter Teknikal Utama | kuasa memandu | berat kg |
||||
| Kapasiti m3/h |
Kepala m |
kelajuan r/min | NPSHR m |
kuasa aci kw |
|||
| CXB150-125-400G | 180 | 130 | 2300 | 63 | |||
| CXB200-150-370 | 300 | 160 | 2950 | 7 | 185 | ~ 450 | |
| CXB200-150-370A | 270 | 145 | 2950 | 7 | 155 | ~ 450 | |
| CXB200-150-350 | 300 | 130 | 2950 | 7.8 | 150 | ~ 450 | |
| CXB200-150-350A | 270 | 120 | 2950 | 7.8 | 118 | ~ 450 | |
| CXB200-150-420/2 | 300 | 150 | 1800 | 4.5 | 210 | ||
| CXB200-150-530L | 300 | 97 | 1480 | 3.5 | 210 | ||
| CXB200-150-530G | 300 | 140 | 1800 | 4 | 163 | ~ 370 | |
| CXB200-150-530GA | 280 | 125 | 1800 | 4 | 138 | ~ 370 | |
| CXB200-150-530GB | 260 | 110 | 1800 | 4 | 116 | ~ 370 | |
| CXB250-200-530G | 750 | 130 | 1800 | 7.5 | 354 | ~ 400 | |
| CXB250-200-530GA | 700 | 115 | 1800 | 7.5 | 300 | ~ 400 | |
| CXB250-200-530GB | 650 | 102 | 1800 | 7.5 | 254 | ~ 400 | |
| CXB250-200-530GC | 600 | 90 | 1800 | 7.5 | 216 | ~ 400 | |
| CXB300-200-530G | 1000 | 140 | 1800 | 8 | 471 | ~ 450 | |
| CXB300-200-680G | 750 | 160 | 1500 | 6.5 | 445 | ~ 580 | |
| CXB350-250-600G | 1700 | 160 | 1800 | 10.8 | 915 | Harus tidak kurang dari 1.1 kali kuasa aci. | ~ 580 |
| CXB350-250-600GA | 1600 | 140 | 1800 | 10.8 | 777 | ~ 580 | |
| CXB350-250-600GB | 1500 | 120 | 1800 | 10.8 | 654 | ~ 580 | |
| CXB350-250-600GC | 1400 | 100 | 1800 | 10.8 | 545 | ~ 580 | |
| CXB350-250-580 | 1300 | 170 | 1800 | 7.5 | 752 | ~ 1500 | |
| 1230 | 105 | 1500 | 5.8 | 451 | |||
| CXB350-300-580A | 1250 | 140 | 1800 | 8 | 607 | ~ 1500 | |
| 1025 | 95 | 1500 | 4.5 | 342 | |||
| CXB350-250-580G | 1500 | 160 | 1800 | 8.4 | 843 | ~ 1230 | |
| 1250 | 110 | 1500 | 5.5 | 486 | |||
| CXB400-300-610 | 1750 | 175 | 1800 | 1043 | |||
| 1500 | 160 | 1800 | 817 | ||||
| CXB400-350-530G | 2400 | 120 | 1800 | 8 | 956 | ||
| CXB450-350-580G | 2900 | 140 | 1800 | 11 | 1350 | ||
| CXB400-350-620 | 1750 | 180 | 1800 | 8 | 1086 | ~ 1800 | |
| 1435 | 120 | 1500 | 4.5 | 610 | |||
| CXB500-400-740 | 4300 | 175 | 1500 | 10.8 | 2411 | ~ 2800 | |
| CXB500-400-740A | 3800 | 160 | 1500 | 9.7 | 1948 | ~ 2800 | |
