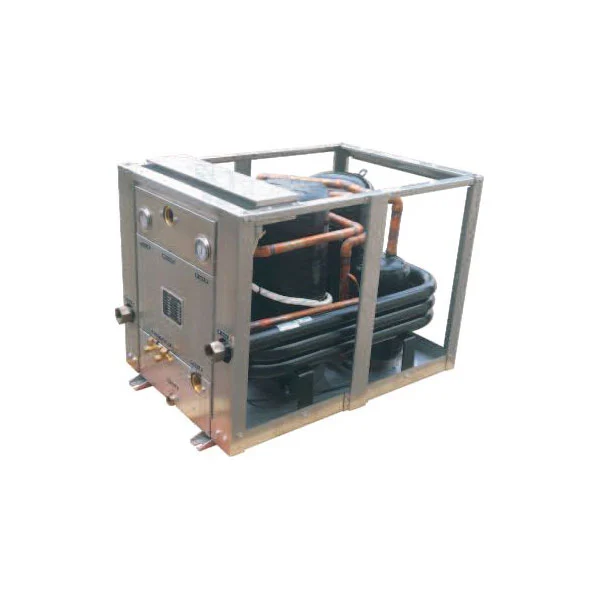

Reka bentuk fleksibel & padat
Unit Modular Plug-and-Play (36,000-180,000 BTU setiap satu)
Gabungkan 1-6 unit untuk kapasiti penyejukan tersuai
Penyejuk modular laut sesuai untuk aplikasi marin yang sedar ruang angkasa

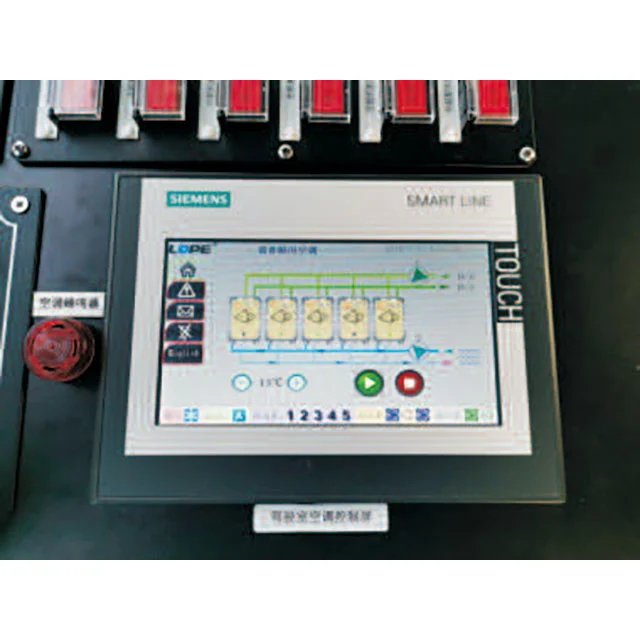

Pengurusan Tenaga Pintar
Operasi berasaskan beban automatik
Pemampat mengaktifkan hanya apabila diperlukan
Memotong sisa tenaga sehingga 30% vs sistem konvensional
Dibina untuk persekitaran laut

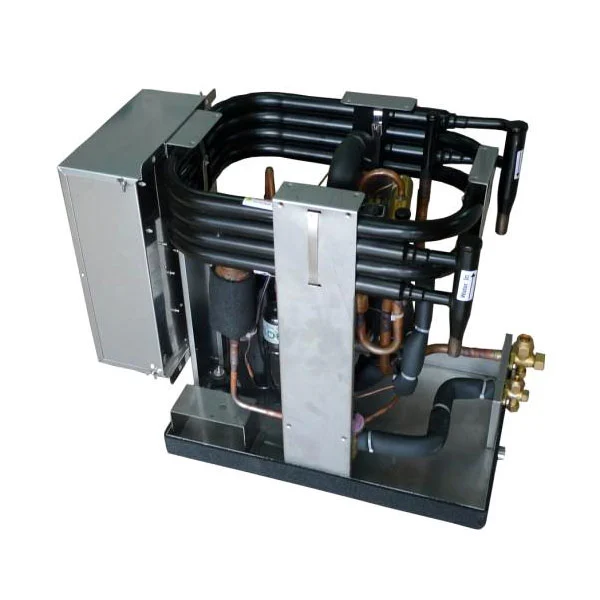

Litar penyejuk tertutup semua-dalam-satu
Tidak diperlukan perhimpunan di tapak yang tidak kemas
Pra-paip untuk pemasangan cepat
Kebolehpercayaan yang boleh anda percayai
Unit yang serba lengkap menyediakan sandaran automatik
Terus menyejukkan dalam talian walaupun satu modul gagal
Terbukti pada catamarans dan feri berkelajuan tinggi
✔ pemampat tatal senyap
✔ Operasi injap 4-arah pintar
✔ kondensor sepaksi tahan karat

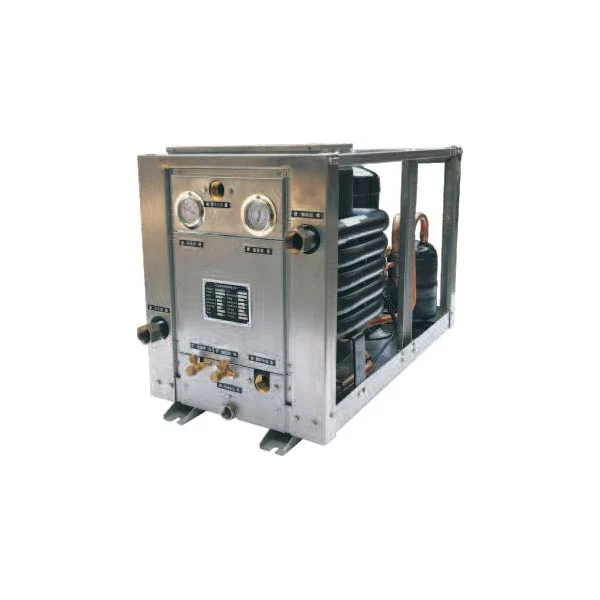

✔ Tolok tekanan mudah dibaca
✔ kuali sendiri

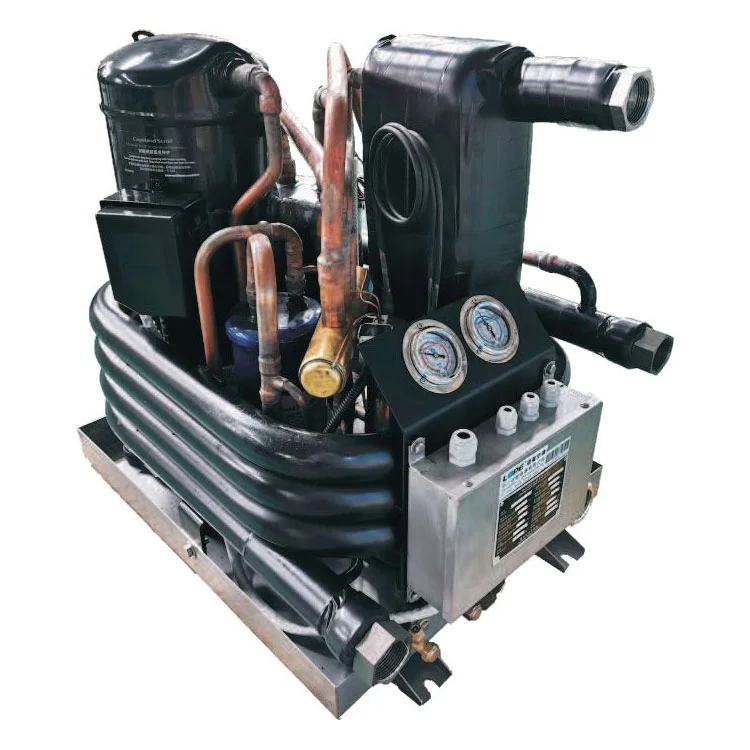

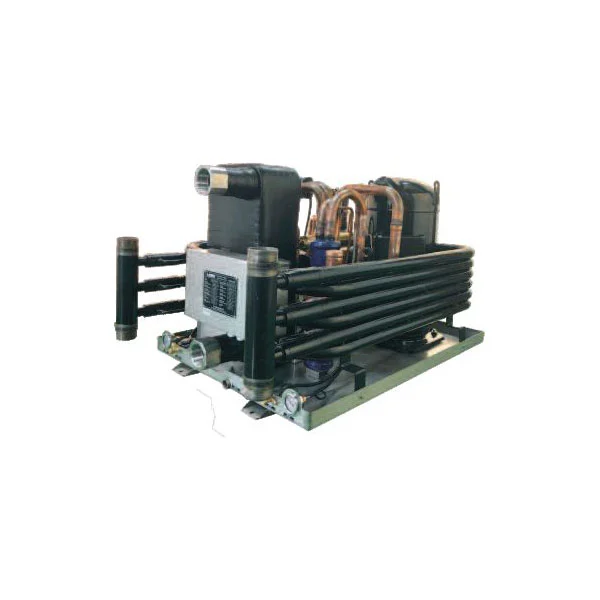

Tiub sepaksi titanium knurled khas
Mengendalikan air laut yang berkualiti rendah
Sesuai untuk kapal pesiar dan kapal komersial
| Model | MWA36-S2C/T. | MWA48-S2C/T. | MWA60-S2C/T. | MWA72-S2C/T. | ||
| Powersupply | PH-V-HZ | 3PH/380V/50Hz | ||||
| Coollng | Kapasiti | Btu | 36, 000 | 48, 000 | 60, 000 | 72, 000 |
| Kuasa input | W | 2, 600 | 3, 460 | 4, 480 | 5, 200 | |
| Arus dinilai | A | 4.6 | 6.2 | 8.0 | 9.2 | |
| Eer | 4.0 | 4.0 | 3.9 | 4.0 | ||
| Pemanasan | Kapasiti | Btu | 44, 500 | 59, 300 | 75, 000 | 89, 000 |
| Kuasa input | W | 3, 250 | 4, 330 | 5, 780 | 6, 500 | |
| Arus dinilai | A | 5.7 | 7.6 | 10.3 | 11.4 | |
| COP | 4.0 | 4.0 | 3.8 | 4.0 | ||
| Max.current | A | 7.4 | 9.9 | 13.6 | 14.8 | |
| Aliran air laut | m³/h | 2.3 | 3.0 | 3.8 | 4.5 | |
| Aliran air penyejuk | m³/h | 1.8 | 2.4 | 3.1 | 3.6 | |
| Sea air | G1 " | |||||
| Chillerwaterpipe | G1 " | |||||
| Paip air pekat | mm | G3/4 " | ||||
| Noiselevel | db (a) | ≤52 | ≤55 | ≤62 | ≤65 | |
| Dimensi (l*w*h) | mm | 694x433x590 | 888 × 415 × 540 | 860x559x580 | ||
| Netweight | Kg | 84 | 90 | 101 | 107 | |
| Jenis penyejuk | R410A | |||||
| Model | MWA90-S2C/T. | MWA120-S2C/T. | MWA150-S2C/T. | MWA180-S2C/T. | ||
| Powersupply | PH-V-HZ | 3PH/380V/50Hz | ||||
| Coollng | Kapasiti | Btu | 90, 000 | 120, 000 | 150, 000 | 180, 000 |
| Kuasa input | W | 6, 230 | 9, 030 | 10, 360 | 12, 430 | |
| Arus dinilai | A | 11.8 | 16.4 | 19.5 | 23.4 | |
| Eer | 4.0 | 3.9 | 4.2 | 4.2 | ||
| Pemanasan | Kapasiti | Btu | 115, 000 | 158, 000 | 189, 800 | 227, 700 |
| Kuasa input | W | 7, 500 | 11, 300 | 12, 940 | 15, 530 | |
| Arus dinilai | A | 13.5 | 19.6 | 23 | 27.6 | |
| COP | 4.5 | 4.0 | 4.3 | 4.3 | ||
| Max.current | A | 15.4 | 23.8 | 29 | 34.8 | |
| Aliran air laut | m³/h | 5.8 | 8.0 | 9.6 | 11.5 | |
| Aliran air penyejuk | m³/h | 4.6 | 6.1 | 7.6 | 9.1 | |
| Sea air | G1-1/4 " | 2xg1-1/4 " | ||||
| Chillerwaterpipe | G1-1/4 " | G1-1/2 " | ||||
| Paip air pekat | mm | G3/4 " | ||||
| Noiselevel | db (a) | ≤67 | ≤71 | ≤74 | ≤78 | |
| Dimensi (l*w*h) | mm | 910 × 600 × 650 | 910x600 × 794 | |||
| Netweight | Kg | 135 | 158 | 215 | 255 | |
| Jenis penyejuk | R410A | |||||
| Model | MWA60-S2D/T. | MWA72-S2D/T. | MWA90-S2D/T. | MWA105-S2D/T. | |||
| Powersupply ph-V-Hz | 3PH/380V/50Hz | ||||||
| Coollng | Kapasiti Btu | 60.000 | 72.000 | 90.000 | 105.000 | ||
| InputPower w | 4.180 | 5.016 | 6.270 | 7.315 | |||
|
A RatedCurrent |
7.9 | 9.5 | 11.8 | 13.8 | |||
| Eer | 4.2 | 4.2 | 4.2 | 4.2 | |||
| Pemanasan | Kapasiti | Btu | 78.000 | 93.600 | 117.000 | 136.500 | |
| InputPower | W | 5.200 | 6.240 | 7.800 | 9.100 | ||
| Arus dinilai | A | 9.3 | 11.2 | 14.0 | 16.3 | ||
| COP | 4.4 | 4.4 | 4.4 | 4.4 | |||
| Max.current | A | 12.9 | 15.5 | 19.4 | 22.6 | ||
| Aliran air laut | m³/h | 3.9 | 4.7 | 5.9 | 6.9 | ||
| Aliran air penyejuk | m³/h | 3.0 | 3.6 | 4.5 | 5.3 | ||
| Air laut laut | G1 " | G1-1/4 " | |||||
| Chillerwaterpipe | G1 " | G1-1/4 " | |||||
| Waterpipe icondensed | mm | G3/4 " | |||||
| Noiselevel | db (a) | ≤62 | ≤65 | ≤67 | ≤69 | ||
| Dimensi (l*w*h) | mm | 655x482x500 | 667x478x610 | ||||
| Netweight | Kg | 95 | 101 | 112 | 120 | ||
| Jenis penyejuk |
R410A |
||||||
| Model | MWA150-S2D/T. | MWA240-S2D/T. | MWA270-S2D/T. | MWA320-S2D/T. | |||||
| Powersupply | PH-V-HZ | 3PH/380V/50Hz | |||||||
| Penyejukan | Kapasiti | Btu | 150, 000 | 240, 000 | 270.000 | 320.000 | |||
| Kuasa input | W | 10, 360 | 13.250 | 16.900 | 21, 400 | ||||
| Arus dinilai | 19.5 | 27.5 | 32.5 | 40 | |||||
| Eer | 4.2 | 4.2 | 4.2 | 4.2 | |||||
| Pemanasan | Kapasiti | Btu | 189, 800 | 315.000 | 340.000 | 406.400 | |||
| Kuasa input | W | 12, 180 | 17.400 | 19.850 | 25.890 | ||||
| Arus dinilai | A | 23 | 33.6 | 36.3 | 46.1 | ||||
| COP | 4.4 | 4.4 | 4.4 | 4.4 | |||||
| Max.current | A | 31.2 | 40.3 | 44.7 | 54.3 | ||||
| Aliran air laut | m³/h | 9.6 | 15.8 | 16.3 | 19.4 | ||||
| Aliran air penyejuk | m³/h | 7.6 | 12.1 | 13.6 | 16.1 | ||||
| Sea air | 2xg1-1/4 " | G2-1/2 " | |||||||
| Chillerwaterpipe | G1-1/2 " | G2 " | 2xg2-1/2 " | ||||||
| Paip air pekat |
mm |
G3/4 " | |||||||
| Tahap bunyi | db (a) | ≤75 | ≤78 | ≤82 | ≤84 | ||||
| Dimensi (l*w*h) | mm | 853x522x693 | 1169 × 705 × 921 | 1397x820x761 | |||||
| Netweight | Kg | 204 | 325 | 345 | 399 | ||||
| Jenis penyejuk | R410A | ||||||||
| Model | MWA36-E2A | MWA48-E2A | BY60-E2A | BY120-S2A IN180-S2A | |||
| Powersupply | PH-V-HZ | 1PH/220V/50Hz | 3PH/380V/50Hz | ||||
| Penyejukan | Kapasiti | Btu | 36, 000 | 48, 000 | 60, 000 | 120, 000 | 180, 000 |
| Kuasa input | W | 2, 510 | 3, 470 | 4, 070 | 8, 760 | 13, 100 | |
| Arus dinilai |
A | 11.4 | 15.8 | 18.5 | 15.9 | 24.5 | |
| Eer | 4.2 | 4.0 | 4.2 | 4.0 | 4.0 | ||
| Pemanasan | Kapasiti | Btu | 49, 500 | 58, 000 | 70, 500 | 153, 000 | 228, 000 |
| Kuasa input | W | 3, 300 | 4, 040 | 4, 620 | 10, 480 | 16, 200 | |
| Arus dinilai | A | 15 | 18.3 | 21 | 18.7 | 28.7 | |
| COP | 4.4 | 4.2 | 4.4 | 4.3 | 4.2 | ||
| Max.current | A | 20 | 23 | 26.5 | 22.8 | 33.1 | |
| Aliran air laut | m³/h | 2.5 | 3.0 | 3.6 | 7.7 | 11.5 | |
| Aliran air penyejuk | m³/h | 1.8 | 2.4 | 3.0 | 6.1 | 9.1 | |
| Air laut laut | G1 " | G1-1/4 " | G1-1/2 " | ||||
| Chillerwaterpipe | G1 " | G1-1/4 " | G1-1/2 " | ||||
| Paip air pekat |
mm |
G3/4 | |||||
| Tahap bunyi | db (a) | ≤52 | ≤55 | ≤62 | ≤68 | ≤73 | |
| Dimensi (l*w*h) | mm | 640 × 430 × 667 | 640 × 450 × 670 | 950 × 600 × 876 | 1050 × 650 × 900 | ||
| Netweight | Kg | 102 | 104 | 105 | 192 | 256 | |
| Jenis penyejuk | R410A | ||||||
